HELLER solutions at ZF

ZF
Automotive
4-/5-axis machining centres MC
Transfer line systems TRS

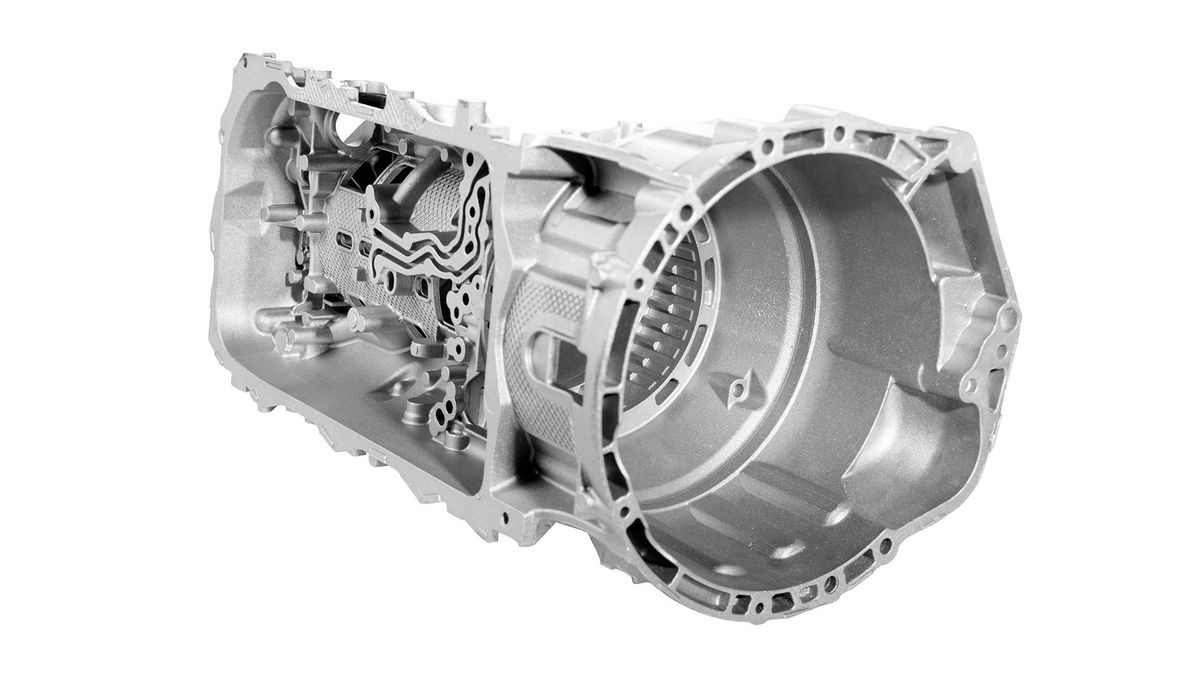

New 8-speed automatic gearbox produced on the HELLER ModuleLine

The wide variety of parts was to be machined randomly. With ModuleLine, HELLER delivered powerful machining modules for cubic components. Ever since, 750 units per day are machined with cycle times below 100 seconds. Moreover, several variants can be machined at the same time with minimal effort.

Task

  • flexible manufacturing system for high part diversity
  • "chaotic" production of all variants on one system for just-in-time delivery for assembly
  • production with adapters for the highest possible accuracy

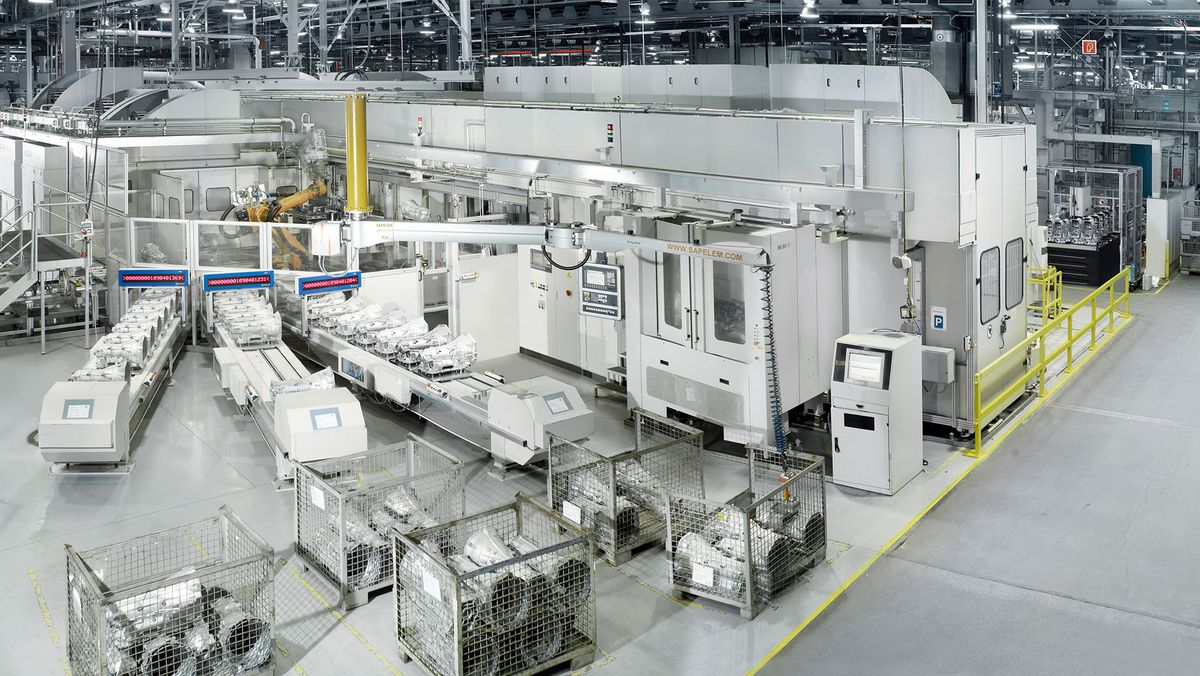

  • loading and unloading of raw and finished parts in the same place

Project scope & solution

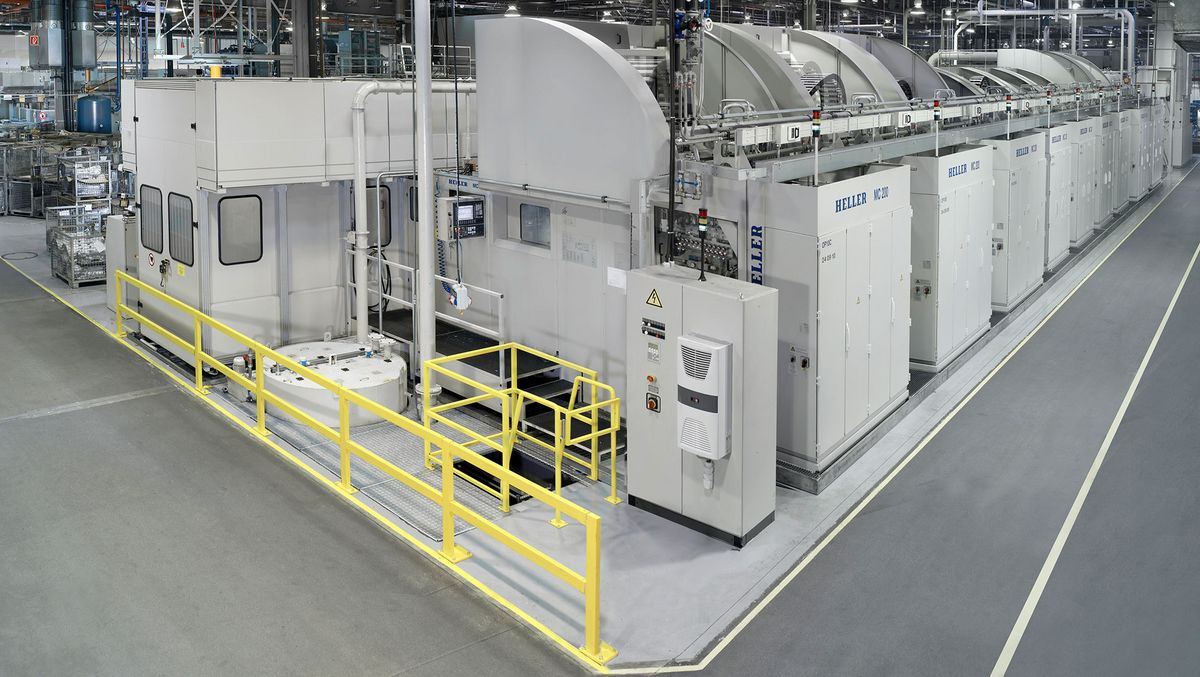

  • ModuleLine from HELLER: powerful machining modules for cubic components, series production
  • flexible loading concept: manual and fully automatic

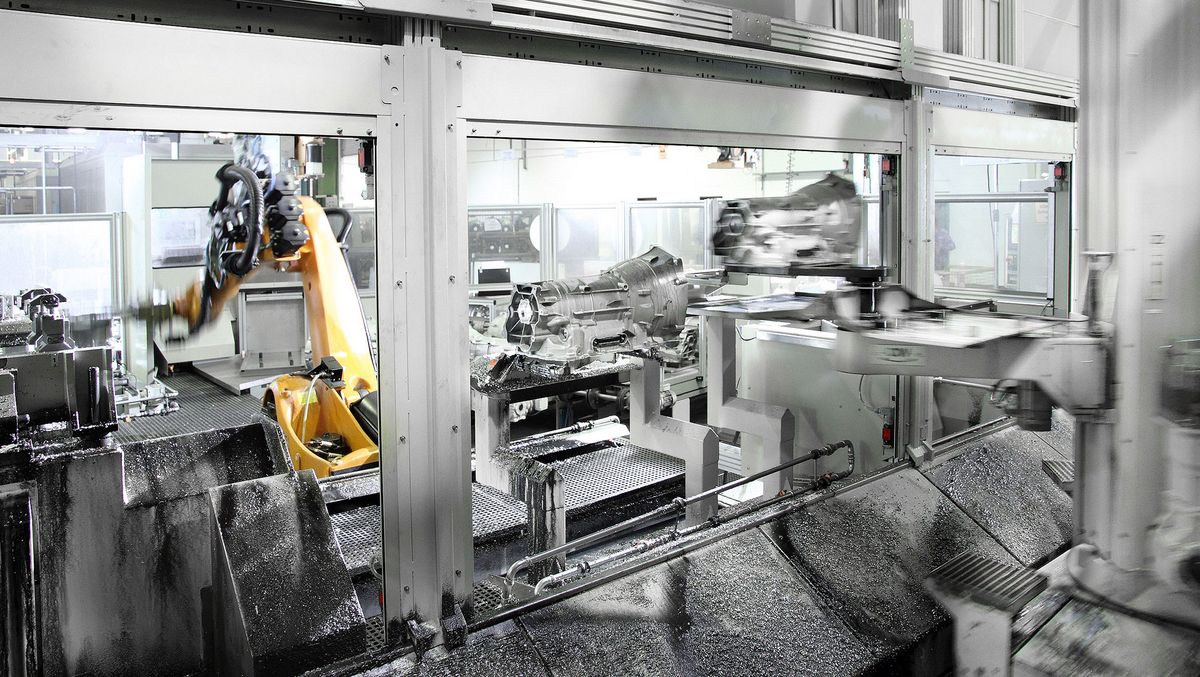

  • machining modules arranged on two sides with central, floor-supported loading system
  • three handling systems that move independently of one another

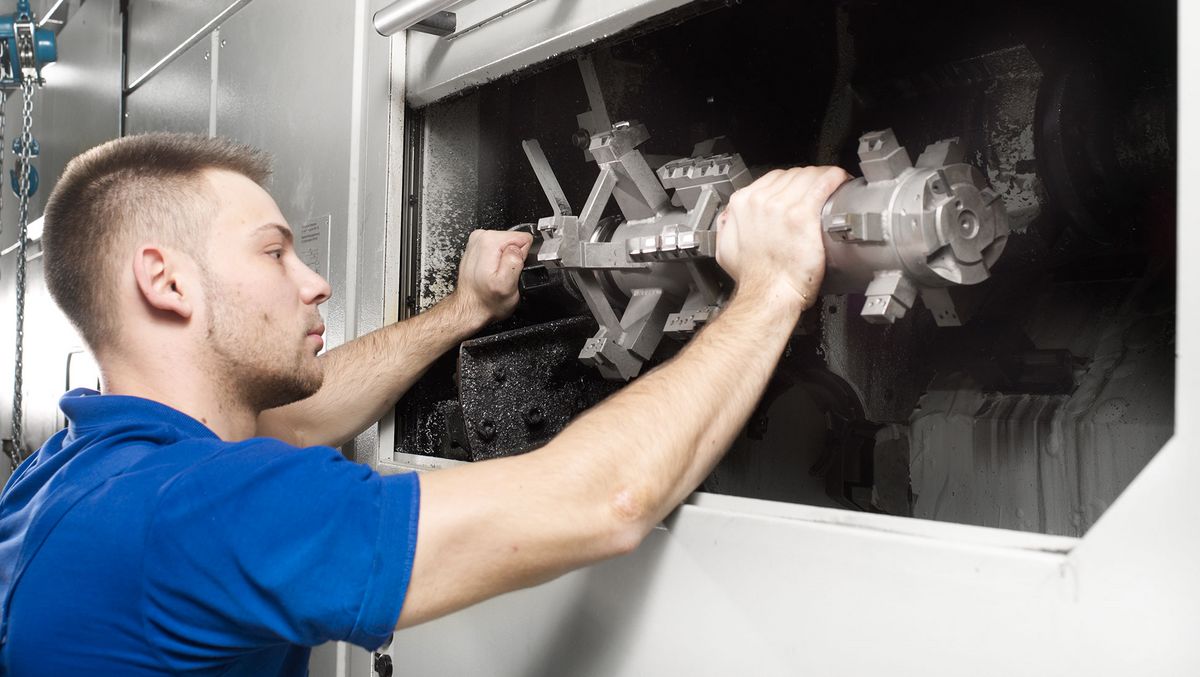

  • development of a standardised workpiece carrier for a standard clamping concept

Result

  • production time of less than 100 seconds
  • 750 units per day
  • simultaneous machining of several variants without equipment modifications
  • due to the high demand for 8-speed gearboxes, the pilot system has been expanded by a second identical, mirror-inverted system
